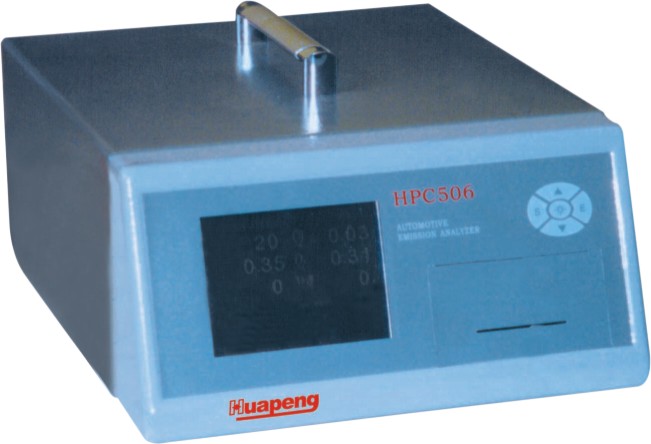

HPC506高精度排气分析仪




主要功能特点:


◆大屏幕液晶显示,中文(或英文)菜单;


采用德国进口红外线探测器、O2NOX传感器,不怕震动,稳定性好,精度高;


◆用于测量COHCCO2O2NOX浓度及 λ值、COcor转速、油温、流量、压力;


◆具有单怠速、双怠速、通用测量功能;


◆可测量以汽油、LPGCNG、酒精及柴油等作燃料的车辆;


◆满足新国标GB18285-2018及美国BAR-97标准,符合ISO3930OIMLR99 00级精度


◆具有自动调零,自动清洗,自动温度补偿、压力补偿;


◆具有HC残留测量、流量监控、气路泄漏检查;


机内有自我诊断功能,故障时会有提示,直到故障排除方可继续测量;


◆具备转速、油温测量,内置打印机或蓝牙、RS232接口


◆可车牌号输入及500组数据存贮,备查功能,时钟显示;




主要技术参数:



测量范围 HC010000×10-6ppmvol CO:010×10-2(%)vol


CO2:020×10-2(%)vol O2: 025×10-2(%)vol


NOx:05000×10-6ppmvol λ:0.503.00 COcor:010×10-2(%)vol


转速:0-9990rpm 油温: 0-150





示值误差


气体种类

量程

示值允许误差

绝对误差

相对误差

HC

02000)×10-6

±4×10-6ppmvol

±3%

20015000×10-6

——

±5%

500110000)×10-6

——

±10%

CO

0.0010.00)×10-2

0.02×10-2(%)vol

±3%

10.0114.00)×10-2

——

±5%

CO2

0.016.0)×10-2

0.3×10-2(%)vol

±3%

16.120.0)×10-2

——

±5%

O2

025)×10-2

0.1×10-2(%)vol

±5%

NOX

05000)×10-6

±25×10-6ppmvol

±4%


重复性 重复误差≤±2%


稳定性 自动校零,量矩漂移≤±3%


分辨率 HC1×10-6ppmvol CO: 0.01×10-2(%)vol CO2: 0.1×10-2(%)vol


O2: 0.01×10-2(%)vol NOx:1×10-6ppmvol λ:0.01


RPM10rpm OIL TEMP0.1


响应时间 95%响应不大于10


预热时间 3min(可预热1min应急检测)


输出方式 可屏幕显示,可打印气体浓度最大值、平均值、最小值及车牌号、测试


时间、日期,转速、油温和λ、COcor值,可附接口与计算机联网


环境条件 温度-550,相对湿度≤90%


电源 AC100-240V 50/60Hz DC12V(选加电源逆变器)消耗功率40VA


外形尺寸 420mm()×310mm()×170mm()


重量 10kg



Main Features:

The large screen liquid crystal display, ( Chinese or English ) menu;

The use of German imports of infrared detector, O2and NOX sensor, vibration resistance, good stability, high precision;

The measurement of CO, HC, CO2for O2, NOX, COcor, concentration and the lambda value, speed, temperature, flow, pressure;

With the single, double idle idle, general measuring function;

It can be measured with gasoline, LPG, CNG and alcohol as a fuel for vehicle;

According to the new standard and the United States BAR97standards development, in line with the ISO3930or OIMLR99 00 level precision;

With the automatic zero adjustment, automatic cleaning, automatic temperature compensation, pressure compensation;

With the HC residue measurement, traffic monitoring, gas leak check;

The machine has self diagnostic function, fault when prompted, until the troubleshooting can continue measurement;

With speed, temperature measurement, built-in printer or Bluetooth / RS232 interface ;

The license plate number input and 500 groups of data storage, reference function, clock display;

Main technical parameters:

Measuring range:HC: 0~10000×10-6(ppm)vol,CO: 0~10×10-2(%)vol )

CO2: 0~20×10-2(%)vol, O2: 0~25×10-2(%)vol

NOx: 0~5000×10-6(ppm)vol,

R.M.P: 0~9999r.m.p OIL TEMP:0~150℃

Lambda: 0.50~3.00 COcor:0~10×10-2(%)vol

Indicating error:

Gas species

range

Indicative permissible error

absolute error

relative error

HC

02000)×10-6

±4×10-6ppmvol

±3%

20015000×10-6

——

±5%

500110000)×10-6

——

±10%

CO

0.0010.00)×10-2

0.02×10-2(%)vol

±3%

10.0114.00)×10-2

——

±5%

CO2

0.016.0)×10-2

0.3×10-2(%)vol

±3%

16.120.0)×10-2

——

±5%

O2

025)×10-2

0.1×10-2(%)vol

±5%

NOX

05000)×10-6

±25×10-6ppmvol

±4%

Stability:moment drift≤±3%

Repeatability ≤±2%

Resolution: HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol,CO2: 0.1×10-2(%)vol,

O2: 0.01×10-2(%)vol, NOx: 1×10-6(ppm)vol, Lambda: 0.01,

R.P.M:10r.p.m, OIL TEMP:0.1℃

Response time: 95% response is not more than 10 seconds

Preheating time: 8min ( preheating 3min emergency detection )

Output mode can display, print gas concentration maximum value, average value, the minimum value of the license plate number, test time, date, speed, temperature and COcor value of lambda,, can interface with computer networking

And-use temperature: -5~50°C, Relative humidity: 90%

Power: AC100~240V 50/60Hz or DC12V( Add power inverter)

Power consumption: 40VA

Dimension: 420 (L )×310(W)×170(H)mm

Weight: 10kg
