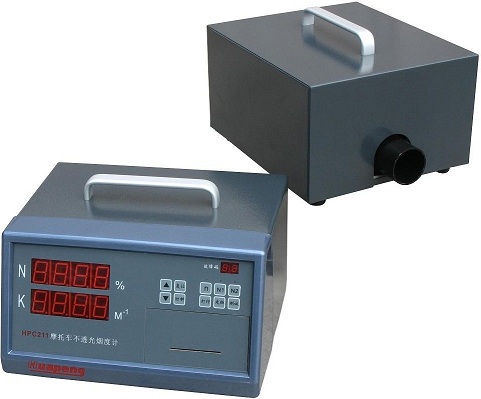

HPC211摩托车烟度计


主要功能特点:
分体式结构设计,操作方便,按新国标GBl9758-2005技术要求研制;
采用内置全流式取样技术,专用测量摩托车急加速、怠速工况时的烟度;
高亮度数码显示,进口关键零部件组装而成;
采用全流式耐高温的特殊取样探头,采样稳定、精确、方便;
开机预热时间10分钟,并自动调零;
数据自动线性化处理,可显示不透光度N、光吸收系数K;
出现故障时自动显示故障代码;
附有自动时钟显示,内置打印机或蓝牙、RS232接口)供选择。

主要技术参数:
测量范围        不透光度N:  0~100%
光吸收系数K:0~90.65m-1
示值误差        ≤±2%
稳定性           自动校零,量矩漂移≤±1%/4h
分辨率           0.1%
响应时间        1S±0.1S
输出方式        LED(4位)显示,可附打印机,打印出5组急加速烟度、怠速烟度、光吸收系数的最大值及平

均值,测试时间、日期等,可附接口与计算机联网
环境条件        温度0~40℃,相对湿度≤90%
电       源        AC100-240V   50/60Hz 消耗功率150VA
外形尺寸        控制单元:250mm(长)×310mm(宽)×170mm(高)
测量单元:350mm(长)×260mm(宽)×170mm(高)
重       量       控制单元:4kg,
测量单元:5kg

Main Features:

◆Separated structural design, easy to operate, according to the new national standard GBl9758-2005 technical requirements for development.
◆With built-in full-flow sampling techniques, application-specific measurement of motorcycle hard phases of acceleration, idle condition when the smoke.
◆High-brightness digital display, import key components assembled.
◆Using a special full-flow high-temperature sampling probe, sampling a stable, accurate and convenient.
◆Ji machine warm-up time 10 minutes, and automatic zero adjustment.
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K.
◆Fails automatically displays fault code.
◆With automatic clock display, built-in printer (RS-232 or analog interface network) for selection.

Main technical parameters:

Test ScopeNo light transmission N:0100%

Light absorption coefficient K:0 ~ 90.65m-1

Indication error: ≤±2% ( measured value)

Stability:moment drift≤±1%/4H

Repeatability ≤±1%

The response time:1S +/-0.1S

Output LED ( 4 ) may be attached to the printer, display, print out 5 groups of sudden acceleration smoke, smoke, speed of light

absorption coefficient of maximum value and average value, test time, date, can interface with computer networking

The measurement chamber temperature:

70 ℃ (automatic), when the temperature error of ± 10%, temperature and error indicator light

And-use temperature: -5~50°C, Relative humidity: 90%

Power: AC100~240V 50/60Hz or DC12V, Power consumption: 150VA

Dimensions: control unit: 250(L)×310(W)×170 (H)mm

( including bracket) measuring unit: 350(L)×260(W)×170(H)mm

Control unit: 4kg

Measuring unit: 5kg
