柴油车烟度计

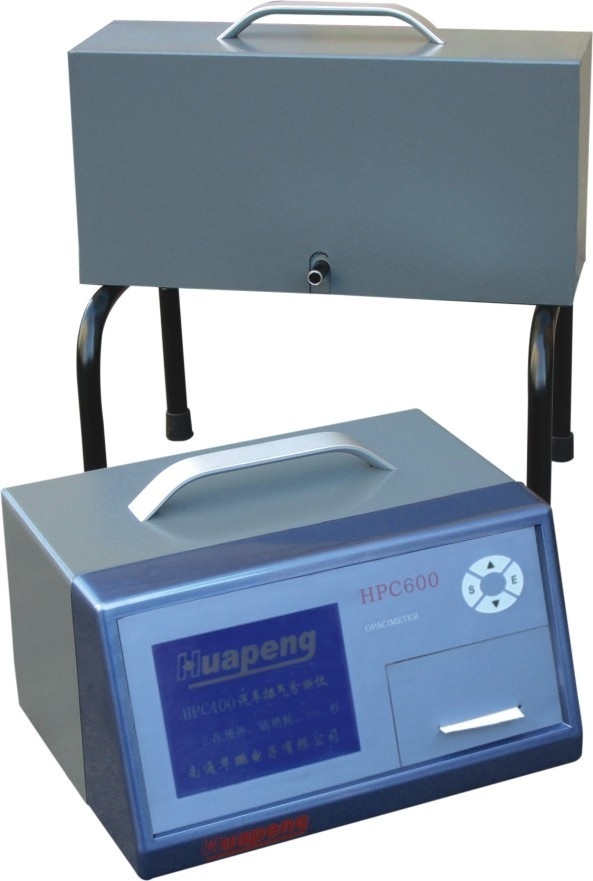

HPC600不透光烟度计

主要功能特点：

分体式结构设计，操作更方便，数据更精确；
大屏幕液晶显示，全中文菜单操作；
采用分流式取样技术、柴油车加速、减速和稳速时均可测量烟度；
数据自动线性化处理，可显示不透光度N、光吸收系数K和对应滤纸式烟度值Sf；
采用“空气幕”技术保护光学系统免受污染；
检测室自动恒温控制，可防冷凝而影响测试精度；
附自动时间显示；
配内置全自动打印机或蓝牙、RS232接口；

可车牌号输入及500组数据存贮，备查功能，时钟显示
配转速、油温测试通道；
符合ISO116614、GB3847-2018、GB36886-2018、JJG976-2010的要求。

主要技术参数 :

测量范围不透光度N: 0～100%(相当烟度值0～10FSN)

光吸收系数K:0～16.06m^-1

转速：0-9990rpm 油温: 0-150℃

示值误差 ≤±2%(测量值)

稳定性自动校零，量矩漂移≤±1%/4h

重复性重复误差≤±1%

分辨率 N为0.1%, K为0.01m^-1 ,RPM为10rpm, OIL TEMP为0.1℃

输出方式液晶显示，可附打印机打印烟浓度(暗度最大值)，即时曲线、测试时间、

日期等。可附接口与计算机联网。

测量室温度 70℃(自动恒温)，当温度误差≥±10%时，温度及错误指示灯亮

环境条件温度-5～50℃，相对湿度≤90%

电源 AC100-240V 50/60Hz或DC12V（选加电源逆变器）消耗功率150VA

外形尺寸控制单元 240mm(长)×310mm(宽)×170mm(高)

(含支架）测量单元 130mm(长)×400mm(宽)×390mm(高)

重量控制单元 4kg

测量单元 5kg

Main Features:

◆Separated structural design, operation more convenient and more accurate data
◆Large-screen LCD display, full English menu;
◆Adopted a triage-type sampling technique, diesel vehicle acceleration, deceleration, and steady speed can be measured when the smoke;
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K and the corresponding value of filter paper-type smoke Sf
◆Use of "air curtain" technology to protect the optical system from contamination;
◆Automatic detection of room temperature control, anti-condensation can affect the test accuracy;
◆Automatically attached to the time display;
◆Automatic with built-in printer (or Bluetooth / RS232) interface or analog output interface);

◆License plate number input and 500 groups of data storage, backup function, clock display
◆With rotational speed, oil temperature test channel;
◆In line with ISO116614 、GB3847-2018 and GB36886-2018 technical requirements.

Main technical parameters:

Test Scope：No light transmission N:0～100% (equivalent to smoke value 0~10FSN)

Light absorption coefficient K:0～16.06 m^-1

RPM：0～9990rpm OIL TEMP: 0～150℃

Indication error: ≤±2% ( measured value)

Stability:moment drift≤±1%/4H

Repeatability ≤±1%

Resolution: N:0.1%, K:0.01m^-1 ,RPM:10rpm, OIL TEMP:0.1℃

Output mode: liquid crystal display, can be attached printer ( dark smoke concentration degree maximum ), real-time curve, test time, date. Can interface with computer networking

The measurement chamber temperature:

70 ℃ (automatic), when the temperature error of ≥± 10%, temperature and error indicator light

And-use temperature: -5~50°C, Relative humidity: ≤90%

Power: AC100~240V 50/60Hz or DC12V, Power consumption: 150VA

Dimensions: control unit: 240(L)×310(W)×170 (H)mm

( including bracket) measuring unit: 130(L)×400(W)×390(H)mm

Control unit: 4kg

Measuring unit: 5kg
